Beer filtration is a very important process in the beer production. It is related to the appearance and taste of beer, as well as biological stability and abiotic stability. This ensures that the appearance of the beer will not change at least during the shelf life, thereby ensuring the perfect appearance and quality of the beer. The beer after fermentation, a few coagulated matter such as yeast and protein is suspended in the beer, causing the beer to become cloudy and turbid. Therefore, it must be clarified through a filtration process to improve the quality.
Beer filtration is one of the most important steps in the entire brewing process. From separating grain solids after mashing to polishing the final product before bottling, each stage needs a different type of filtration equipment. A complete beer filtration system typically covers three major stages — wort separation, post-fermentation clarification, and final fine filtration.
Getting this right has a direct impact on beer clarity, flavor stability, and shelf life. Breweries that skip or use inadequate filtration often end up with hazy beer, off-flavors from yeast autolysis, or products that spoil faster than expected. Whether you run a craft brewery or a large-scale commercial plant, matching the right equipment to the right stage is what makes the difference.
On this stage, the beer is hot temperature and high solid content, using a membrane filter press to separate solid and beer wort very well, and the membrane can squeeze the filter cake to squeeze out more beer wort in the cake.
On the stage, a few coagulated matter such as yeast and protein is suspended in the beer, causing the beer to become cloudy and turbid. The candle filter and stainless steel frame and plate filter press are recommended. The candle filter and stainless steel plate filter press both need diatomite to precoat to improve the filtration effect.
The Microporous pleated cartridge filter is recommended, because there is very little and very tiny impurities in the beer on the stage, using a 0.22micron cartridge to further purify beer.
Different stages of the beer filtration process require different types of equipment. The table below gives a quick comparison of what each stage needs and what each piece of equipment does.
| Stage | Equipment | Temperature | Solid Content | Main Purpose |
|---|---|---|---|---|
| Post-Mashing | Membrane Filter Press | Hot (60–80°C) | High | Separate grain solids from wort, recover maximum wort |
| Post-Fermentation | Candle Filter / SS Plate & Frame Filter | Cold (0–5°C) | Low to Medium | Remove yeast, protein, and colloidal haze |
| Pre-Bottling | Microporous Cartridge Filter | Ambient | Very Low | Final polishing, remove submicron particles |
Right after mashing, the liquid (wort) is mixed with a large amount of grain solids. The temperature at this stage is high, typically between 60°C and 80°C, and the solid content is significant. This is where a membrane filter press for wort filtration works best.
The membrane filter press uses inflatable diaphragm plates to squeeze the filter cake after the initial filtration cycle. This squeezing action pushes out more wort that would otherwise stay trapped in the solid cake — improving both yield and efficiency. Compared to traditional lauter tuns, the membrane filter press handles higher solid loads and gives a drier cake with less wort loss.

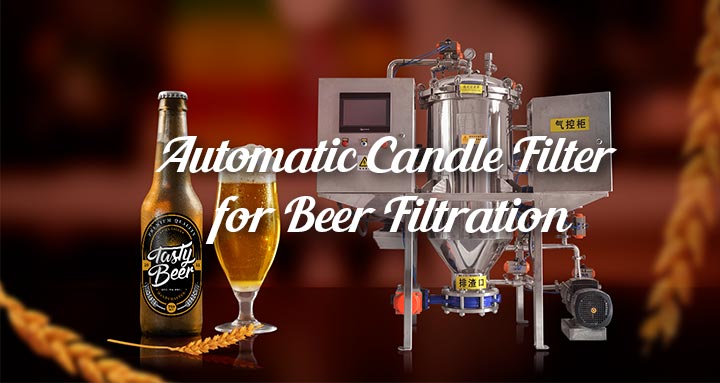

Once fermentation is complete, the beer still contains yeast cells, proteins, and polyphenol complexes. These cause turbidity and can affect both flavor and shelf life. The candle filter for beer filtration is one of the most widely used options at this stage in larger breweries.

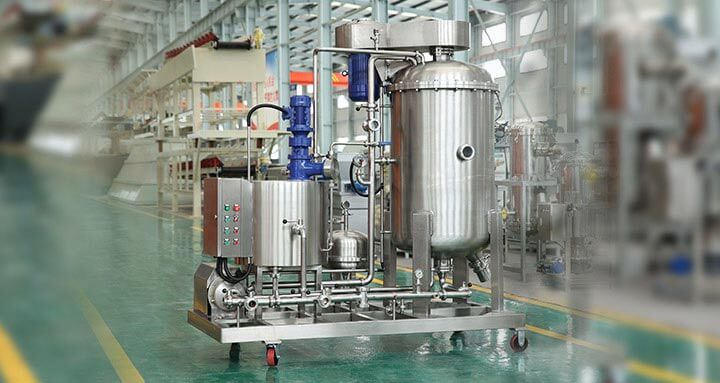

The candle filter works with diatomaceous earth (diatomite) as a filter aid. A pre-coat layer of diatomite is formed on the candle elements before filtration begins. As beer passes through, particles get trapped in this layer while the clear beer flows out. The stainless steel plate and frame filter press with diatomite precoat works on the same principle and is a good option for mid-scale breweries.
Both types of equipment need to handle cold beer (around 0–5°C after cold crashing) and require good CIP (clean-in-place) compatibility since hygiene is non-negotiable in brewing.
Diatomaceous earth is the most commonly used filter aid in beer filtration. It creates a porous cake structure that traps yeast and protein particles without blocking the filter too quickly. The grade of diatomite used varies depending on what needs to be removed:
The last stage before beer goes into bottles, cans, or kegs is the fine filtration step. At this point, the beer is already relatively clear, but very fine particles and potential microbial contamination still need to be addressed. A 0.45-micron cartridge filter removes most remaining particles, while a 0.22-micron cartridge provides near-sterile filtration.
This stage uses a microporous pleated cartridge filter housing — typically made from stainless steel to meet food-grade hygiene requirements. The pleated design gives a larger filtration surface area in a compact housing, which helps maintain good flow rates without frequent cartridge changes.
Choosing the right equipment for each stage of a beer filter system depends on several practical factors. The table below covers the main parameters to evaluate before making a selection.
| Parameter | Stage 1 (Wort Separation) | Stage 2 (Clarification) | Stage 3 (Fine Filtration) |
|---|---|---|---|
| Flow Rate | High | Medium to High | Medium |
| Filtration Accuracy | Coarse (remove grains) | Medium (remove yeast, protein) | Fine (0.22–0.45 micron) |
| Operating Temperature | 60–80°C | 0–5°C | Ambient |
| Filter Aid Required | No | Yes (diatomite) | No |
| Material Requirement | Food-grade PP or SS | Stainless Steel 316L | Stainless Steel 316L |
| CIP Compatibility | Required | Required | Required |
| Automation Level | Semi to Fully Automatic | Semi to Fully Automatic | Manual to Semi |
Before purchasing any equipment for a brewery filtration setup, there are a few practical things worth confirming with your supplier. A commercial beer filtration system that works well for one brewery may not suit another if the production volumes, beer styles, or local water quality are different.
A well-matched beer filter system not only improves the visual appeal of the finished beer but also extends shelf life, reduces product complaints, and keeps the production line running without unplanned downtime. Working with an experienced filtration equipment supplier helps ensure you get the right configuration from the start, rather than retrofitting later when problems arise.
