Description

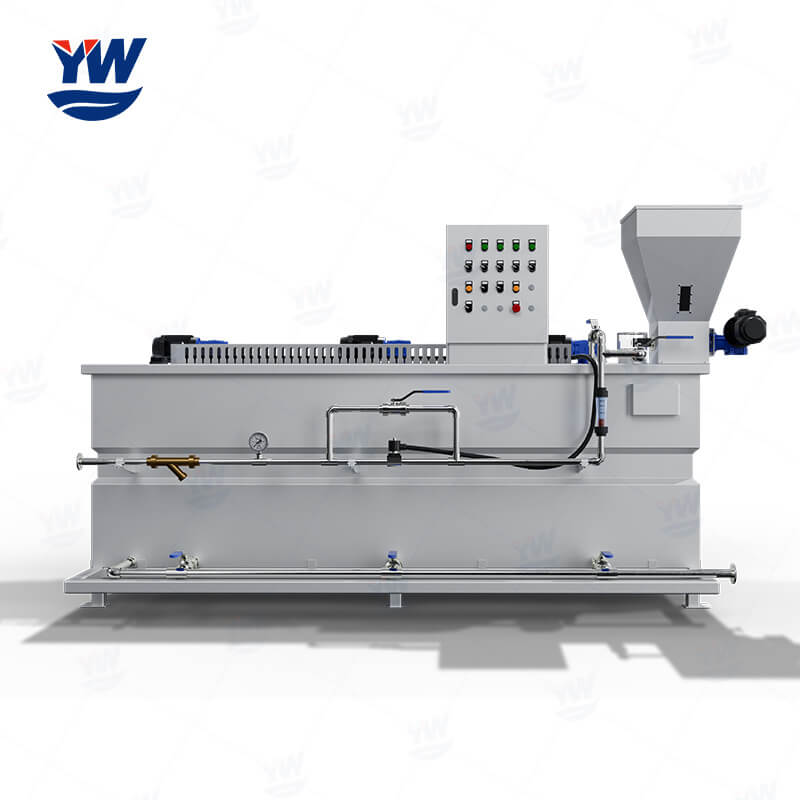

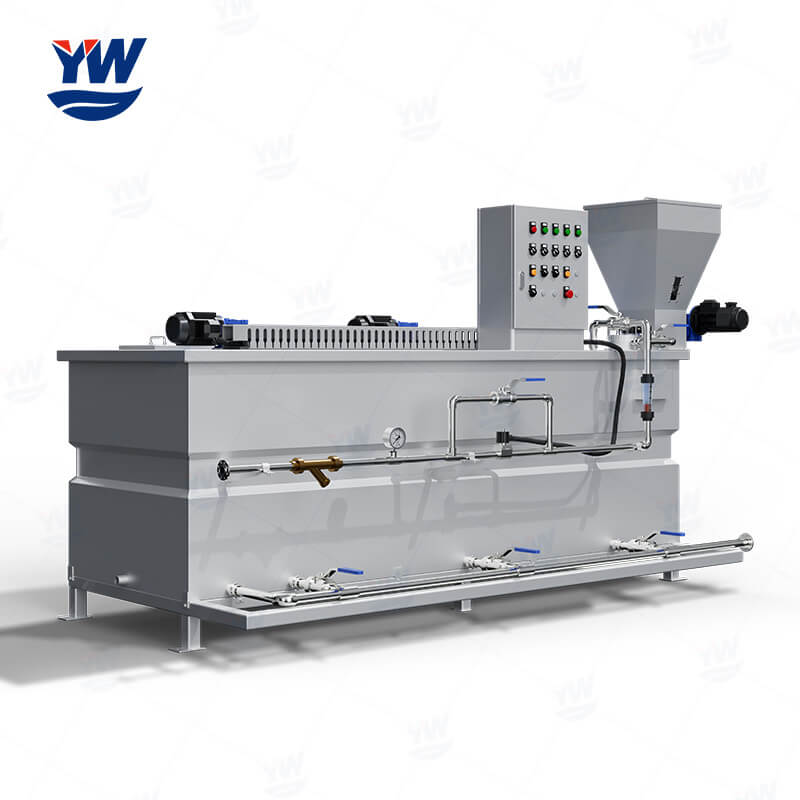

Automatic dry powder dosing machine is mainly used for the fully automatic continuous preparation and powder dosing system of powdered materials. It is a complete set of equipment integrating dosing, mixing, liquid transportation and automatic control. It is widely used in raw water of power plants, boiler feed water, oil field ground gathering and dehydration treatment systems, papermaking, chemical industry, wastewater treatment systems.

Structure

Four functions: the equipment combines the four functions of dry powder dosing device, water inlet unit, solution tank, and automatic liquid level instrument. It integrates automatic batching, dissolution, and dosing, and dissolves powdered flocculants into flocculants solution.

Dry powder dosing device: The equipment is equipped with a dry powder dosing device, and the volume of the feeding hopper is large, which can reduce the number of dry powder dosing. According to the required concentration, prepare the medicament (powder) to be added.
Water inlet unit: The water inlet unit of the equipment is composed of a solenoid valve, a pressure gauge, and a flow meter to obtain a certain amount of water, so that the water and the medicament (powder) to be added are prepared in a certain proportion.
Solution tank: The equipment is equipped with a solution tank, there are two tank and three tank options, each tank is installed with an electric stainless steel mixer, which can be fully mixed after the solute and water are configured in a certain proportion.
Automatic liquid level control instrument: when the liquid level rises to a certain point, it can automatically start and stop to ensure the continuity of the automatic powder dosing machine.

Specification

Model	Tank NO.	Capacity	Hopper Volume	Power of Feeder (Frequency Conversion)	Power of Mixing Device (KW)
ZJY-500	2 tanks	500	30L	0.18	0,37x2
ZJY-1000	3 tanks	1000	40L	0.18	0.37x3
ZJY-1500		1500	50L	0.18	0.37x3
ZJY-2000		2000	50L	0.18	0.37x3
ZJY-3000		3000	80L	0.18	0.37x3
ZJY-4000		4000	140L	0.37	0.37x3

Features

Adjustable precision: The automatic powder dosing machine is accurate and adjustable, to ensure uniform feeding, dispersion, to ensure the treatment effect, to avoid waste.
Fully automatic control: The equipment is equipped with automatic systems such as liquid level monitoring and alarm to ensure the automatic operation of the entire system, improve operating efficiency, reduce manual intervention, and save labor.
Environmentally friendly and durable: The equipment uses a rugged structural design, all stainless steel housing, good corrosion resistance, simple maintenance, which ensures the quality of the equipment reliable and long-term use. And the main motor adopts frequency conversion motor to reduce energy consumption and operating costs.

Applications

The automatic powder dosing machine is suitable for the process of dissolving and continuously adding chemical dosing. Common applications include flocculation treatment of municipal or industrial wastewater, flocculant production in sludge dewatering process, drinking water purification treatment, wastewater treatment in chemical, paper, and metallurgical industries.

Frequently Asked Questions

What are the primary functions integrated into this automatic powder dosing machine?

The system integrates four main functions into a single unit: dry powder feeding, water inlet proportioning, solution tank mixing via electric stainless steel mixers, and an automatic liquid level instrument for continuous preparation control.

How does the system ensure precise chemical solution concentration?

It pairs a frequency conversion dry powder feeder with a water inlet unit featuring a solenoid valve, pressure gauge, and flow meter. This coordinates powder and water flow to match precise, predetermined mixing ratios.

What tank options are available, and how is complete mixing achieved?

The system offers 2-tank (ZJY-500) and 3-tank (ZJY-1000 to ZJY-4000) configurations. Each tank features an electric stainless steel mixer to fully dissolve powdered flocculants into a uniform chemical solution.

How does the automatic liquid level instrument improve operation?

The liquid level control instrument monitors fluid heights, automatically starting or stopping the system based on capacity. This ensures continuous solution preparation, reduces manual oversight, and triggers automated system alarms.

What makes this dosing machine durable in harsh industrial environments?

Built with a rugged, all-stainless steel housing, the equipment provides exceptional corrosion resistance. Its design simplifies routine maintenance while its frequency conversion motor lowers overall energy consumption and long-term operating costs.
