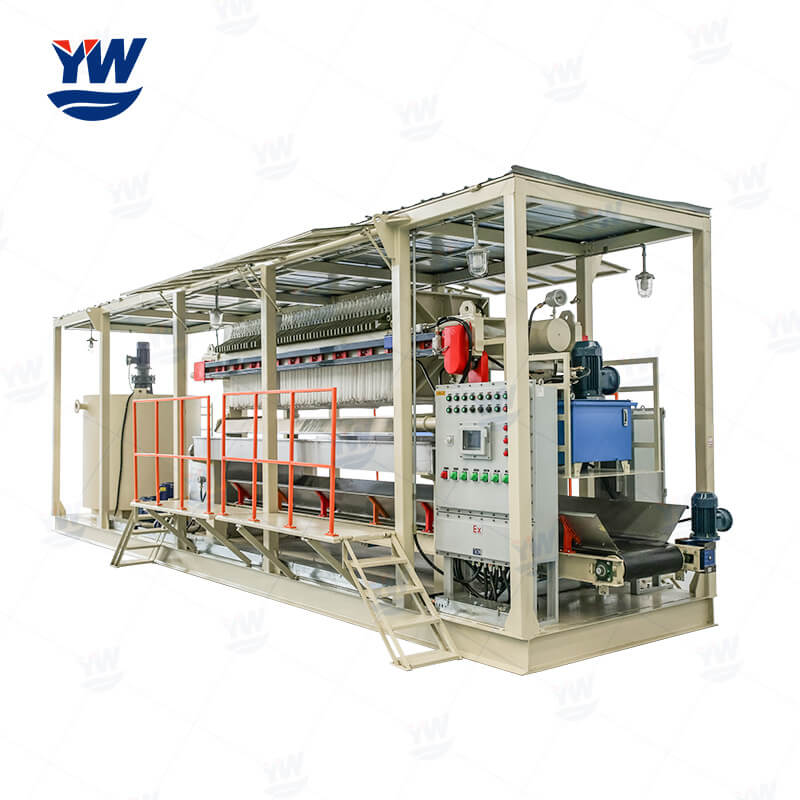

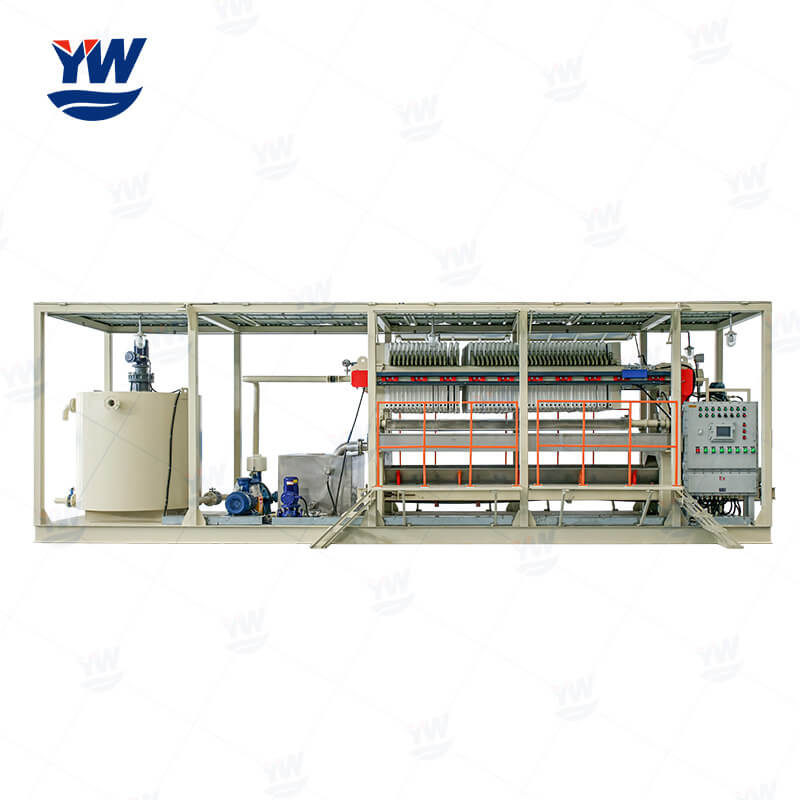

Models : Skid mounted filter press
Filter Area : 50-500m²
Plate Quality : 28-123Pcs
Filter volume : 736-8735L
Yu Wei offers complete filter press dewatering systems mounted on skid or trailer. It includes a filter press, feed pump, if required, small slurry tank if required, interconnecting pipes, valves, gauges, fittings from the filter press inlet to the filter press feed pump outlet, which will be mounted on an appropriate precast steel frame.
Our controls are fully integrated into the gravity deck. The operator can adjust belt speed, sludge pump speed and polymer concentration, as well as adjust the timer, etc., on the gravity platform or the main operation panel.
Due to a stationary filter plant can only be used at a low level of utilization. Our fully automatic skid mounted membrane filter press are designed with long-term value and ease of operation in mind. The complete filtration press equipment is mounted on a semi-trailer and is particularly suitable for regularly dewatering sludge from several plants. Yuwei fully automatic skid mounted membrane filter press is fully equipped and can be put into operation immediately after connecting the sludge, water and power supply.
A skid-mounted design means the entire filtration system—including the filter press, control cabinet, hydraulic station, feed pump, and piping—is pre-installed and integrated onto a single, heavy-duty steel base frame (the "skid"). The primary advantage is its "plug-and-play" capability; it eliminates the need for complex on-site assembly, foundation construction, or intricate piping work. It is an ideal solution for mobile applications, rental projects, or facilities with limited space where rapid deployment is necessary.
Yes, there is no compromise in performance. The skid-mounted system incorporates the exact same high-efficiency, fully automatic membrane squeezing technology as larger stationary units. It is designed to handle high-pressure filtration and secondary membrane compression, ensuring you achieve the same level of cake dryness, filtration precision, and throughput as a permanently installed machine of an equivalent size.
The system is integrated with a centralized PLC control cabinet that manages the entire operation seamlessly. Once the system is connected to your power supply and feed line, it automatically executes the full sequence: closing the plates, high-pressure feeding, secondary membrane squeezing, compressed air blowing (to further dry the cake), and automatic plate shifting for discharge. Sensors monitor the process in real-time, making it suitable for completely unattended, automated operation.
Because of its versatility and mobility, this system is widely used in industries requiring high-efficiency dewatering in temporary or decentralized locations. It is perfect for municipal emergency sewage treatment, mobile mine site tailings dewatering, on-site construction sludge treatment, and for companies that need to move filtration capacity between multiple manufacturing facilities or processing plants.
Because the system is pre-piped and pre-wired on the skid, installation is highly simplified. You generally only need to provide a main electrical power connection, a primary slurry feed line, a compressed air source for the membrane squeeze and cake-blowing functions, and a drain or discharge point for the filtrate. Once these connections are made to the terminal points on the skid, the machine is ready for immediate production.
