Filter Press Plate: A Guide to Types and Specifications

A filter press plate is a fundamental component in the process of liquid-solid separation. These plates form the core of a filter press, creating a series of chambers where slurry is pumped under pressure. As the liquid, or filtrate, passes through the filter cloths lining each plate, the solid particles are trapped, forming a compressed, dry filter cake. The efficiency, durability, and overall performance of a filtration system depend heavily on the design and quality of the filter press plate. Selecting the right plate is crucial for optimizing cycle times, achieving desired cake dryness, and ensuring the longevity of the equipment across various industrial applications.

Main Types of Filter Press Plates

Filter press plates come in several designs, each engineered for specific operational needs and slurry characteristics. The three primary types are recessed chamber, membrane squeeze, and plate and frame. Understanding the differences between them is key to selecting the most effective solution for your filtration process.

Recessed Chamber Filter Press Plate

The recessed chamber filter press plate is the most widely used design in modern filtration systems. These plates feature a concave depression on both sides. When two plates are pressed together, the recesses form a hollow chamber where the filter cake accumulates. They are known for their robust construction and ability to handle high feed pressures, making them suitable for a wide range of dewatering tasks.

Recessed chamber plates are available in two main configurations: gasketed (CGR) and non-gasketed (NG). Gasketed plates use a rubber or elastomeric seal around the chamber's perimeter, creating a virtually leak-proof seal that is essential in applications involving hazardous materials or where filtrate clarity is paramount. Non-gasketed plates are simpler and offer quicker cloth changes, though they may allow for minor dripping. These plates are a core component of our chamber filter press systems, which are designed for strength and efficient operation.

Key Features of Recessed Chamber Plates:

• Creates a defined chamber for cake formation.
• Stronger design allows for higher fill pressures compared to plate and frame designs.
• Available in gasketed (CGR) for a near-perfect seal and non-gasketed (NG) versions.
• Suitable for automated processes, including mechanical plate shifting.

Membrane Squeeze Filter Press Plate

Membrane squeeze plates take filtration a step further by introducing a flexible, inflatable diaphragm into the plate design. These plates are typically used in a "mixed pack," alternating with standard recessed chamber plates. After the initial filtration cycle fills the chambers with cake, a fluid (usually water or air) is pumped into the membrane, causing it to expand and mechanically squeeze the filter cake.

This additional compression phase removes significantly more liquid than a standard recessed cycle, resulting in drier filter cakes and shorter overall cycle times. This technology is particularly beneficial for compressible sludges or when maximum liquid recovery is a priority. Our membrane filter press units leverage this technology to deliver superior dewatering performance, especially when dealing with high-value products or challenging waste streams. A membrane filter press plate is more complex but offers substantial gains in efficiency.

When to Use a Membrane Squeeze Plate:

• The filter cake is compressible.
• The slurry contains a high percentage of solids.
• Cutting down on cycle time is an important goal for operations.
• Achieving the highest possible cake dryness is required for disposal or further processing.

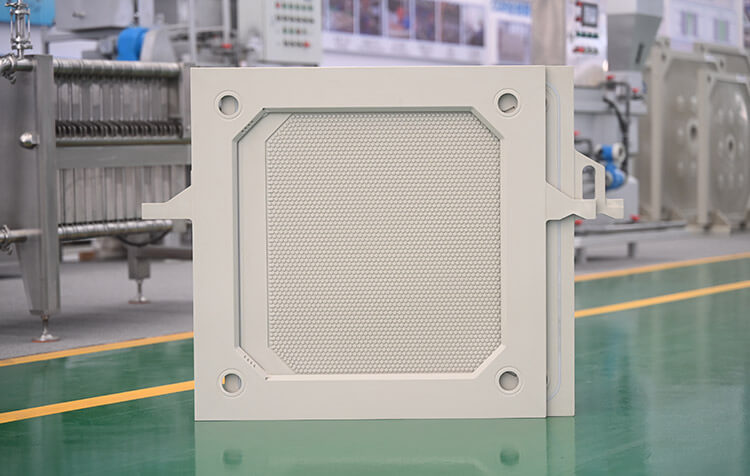

Plate and Frame Filter Plates

The plate and frame design is the oldest type of filter press plate, but it remains useful for certain specialized applications. This system consists of two distinct components that alternate in the press: flat plates and hollow frames. The filter cloth is draped over the plates, and the frames create the space for the filter cake to form.

One of the main advantages of this design is its versatility in cake thickness; by simply swapping out the frames for thicker or thinner ones, the cake volume can be easily adjusted. Plate and frame systems are often used for fine filtration or "polishing" applications, where filter paper might be used in conjunction with the cloth for extremely high filtrate clarity. They typically operate at lower pressures than recessed chamber presses. Our plate and frame filter press models are ideal for such specialized tasks.

Characteristics of Plate and Frame Systems:

• Allows for variable filter cake thicknesses by changing frame size.
• Ideal for applications requiring filter paper for fine polishing.
• Generally operated at lower pressures.
• Commonly used in the production of specialty chemicals and in the food and beverage industry.

Specifications and Material Selection for a Filter Press Plate

Choosing the right filter press plate involves more than just selecting a type; it requires careful consideration of materials and technical specifications to ensure compatibility with your process conditions.

Plate Materials

The material of a filter press plate must be able to withstand the chemical composition, temperature, and pressure of the application.

• Polypropylene: This is the most common material due to its excellent chemical resistance, light weight, and affordability. It is suitable for a wide range of pH levels and temperatures up to approximately 80°C (176°F).
• Ductile Iron: For applications involving high temperatures or extreme pressures, ductile iron plates provide superior strength and durability. They are often used in demanding environments like mineral processing.
• Stainless Steel: When the purity of the filter is very important, like in the food, drink, and pharmaceutical industries, stainless steel is the best choice. Our stainless steel filter press systems use plates made from high-grade stainless steel to prevent contamination and comply with sanitary standards.
• Carbon Steel: A cost-effective option for non-corrosive, high-temperature applications.
• Aluminum Alloys: Used in specific applications where its properties are advantageous, though less common than other materials.

Technical Specifications

The performance of a filter press is directly tied to the specifications of its plates. When designing a system, several factors must be considered to optimize the filtration process. For smaller, experimental setups, our lab filter press offers a compact solution for testing these parameters.

The table below outlines common specifications for a standard polypropylene filter press plate.

Industrial Applications of Filter Press Plates

Filter press technology is indispensable across numerous industries, providing a reliable method for separating solids from liquids. The versatility of the filter press plate allows it to be adapted for everything from heavy-duty mining operations to delicate food processing.

• Mining and Mineral Processing: Filter presses are used to dewater mineral concentrates and tailings. A high-quality filter press plate can produce very dry cakes, which reduces transportation costs and facilitates dry stacking of tailings, a more environmentally stable disposal method.
• Chemical Manufacturing: The chemical industry relies on filter presses for separating products from reaction mixtures, filtering out catalysts, and treating wastewater. The chemical resistance of polypropylene plates makes them a standard choice in this sector.
• Wastewater Treatment: Municipal and industrial wastewater treatment plants use filter presses to dewater sludge. A sludge filter press with durable plates reduces the volume of sludge for disposal, significantly lowering associated costs. Membrane plates are often used here to achieve maximum cake dryness.
• Food and Beverage: In this industry, sanitary designs are crucial. Stainless steel plate and frame presses are used for polishing liquids like wine, beer, and syrup to achieve crystal-clear clarity. You can find equipment tailored for these uses, such as beer & wine filter equipment and sugar syrup filter machines.
• Pharmaceuticals: Purity is the top priority in pharmaceutical production. Stainless steel filter presses ensure that products are not contaminated during filtration, making them essential for separating active pharmaceutical ingredients (APIs) and other high-value substances.

High-Quality Filter Press Plates Benefits

Investing in high-quality filter press plates from a reputable supplier offers significant long-term advantages. While they may represent a higher initial cost, their superior performance and durability lead to a lower total cost of ownership.

1. Improved Cake Dryness: Well-designed plates, particularly membrane squeeze types, achieve lower moisture content in the filter cake. This reduces disposal weight and costs and can increase the recovery of valuable liquid products.
2. Enhanced Durability and Lifespan: Plates made from high-grade materials are more resistant to chemical attack, high pressures, and physical wear and tear. This means fewer replacements, less downtime, and more consistent operation.
3. Increased Efficiency: A premium filter press plate optimizes the flow of filtrate and promotes the formation of a uniform cake. This leads to shorter cycle times and higher throughput, boosting overall productivity.
4. Better Sealing and Safety: Gasketed (CGR) plates provide a reliable seal that prevents leaks. This is vital for protecting workers from hazardous materials and for preventing product loss.
5. Precise Performance: A high-quality filter press plate is manufactured to exact specifications, ensuring a perfect fit and function within the filter press. This precision prevents plate and cloth damage and guarantees optimal filtration performance. Our complete filter plate offerings are designed to meet these exacting standards.

Picking the right filter press plate is an important choice that will affect the safety, efficiency, and profitability of your whole filtration operation. By understanding the different types, materials, and specifications, you can select a solution that is perfectly tailored to your needs.
