PA/PE Micropore filter-Yuwei Filtration Equipment Co., Ltd.

Description

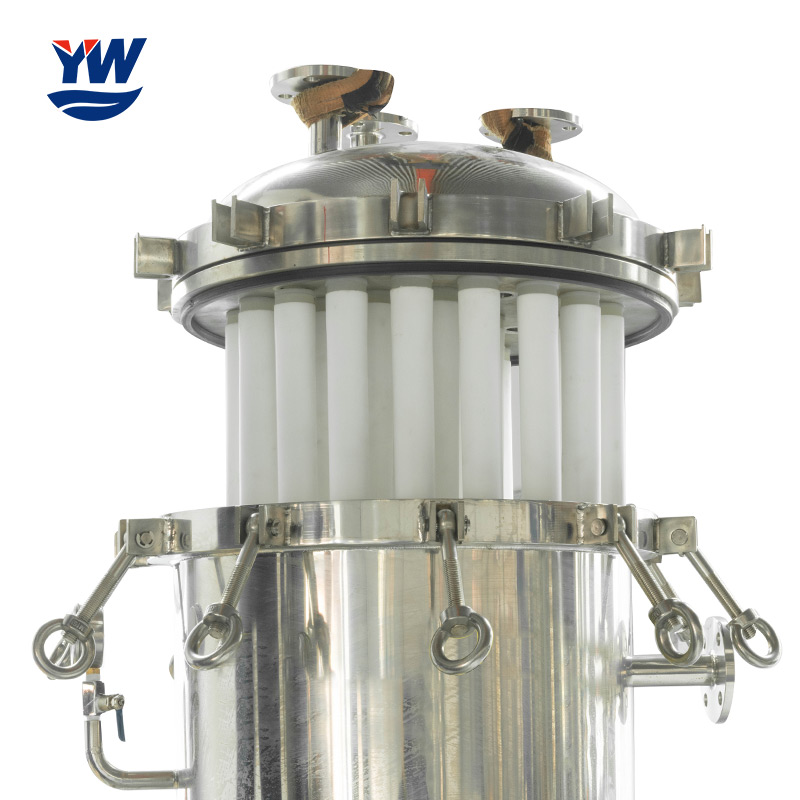

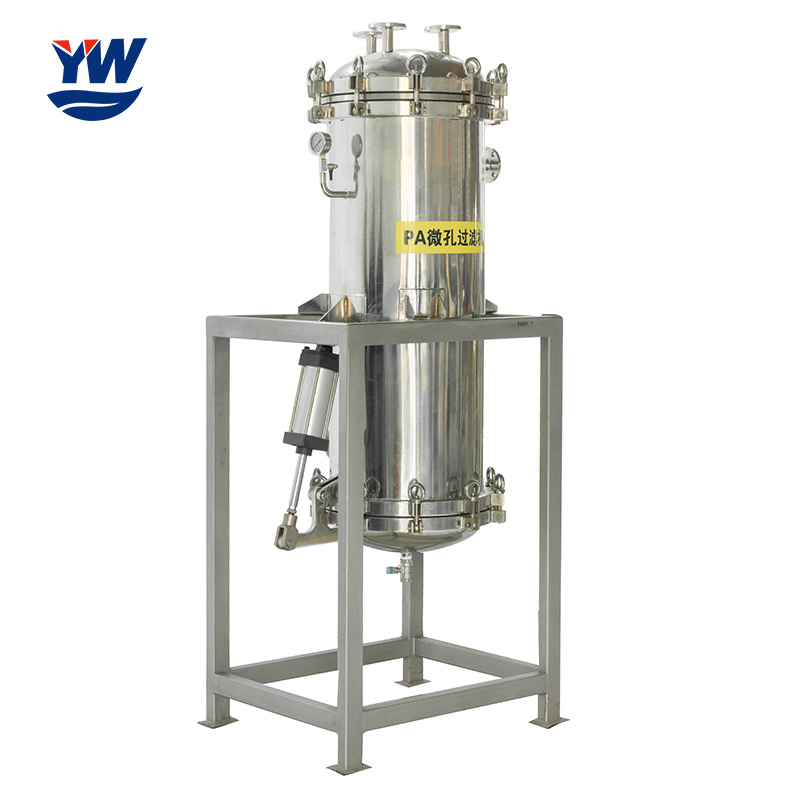

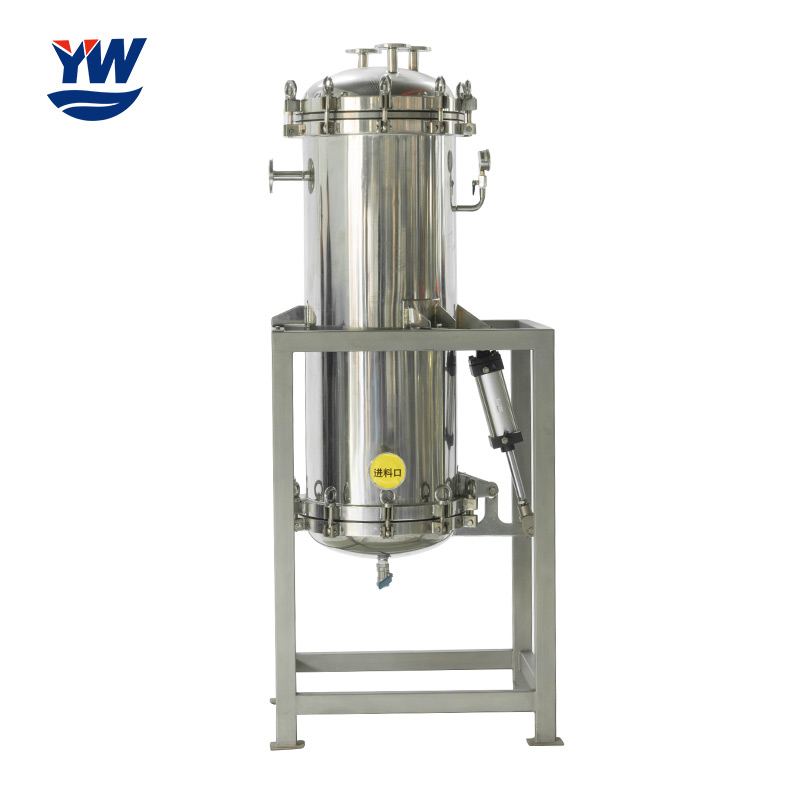

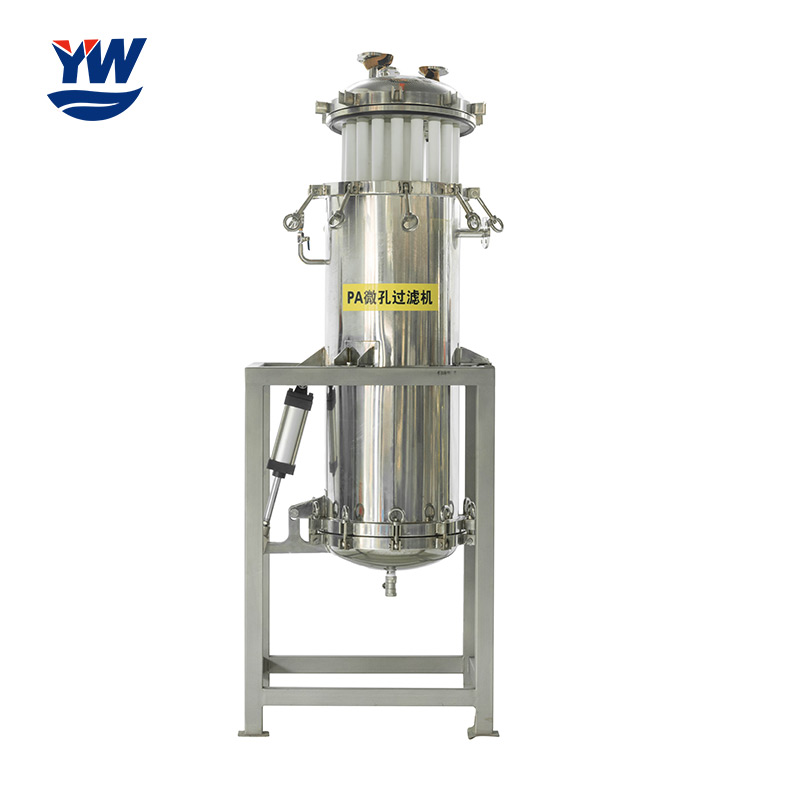

PA/PE micropore filter is a high precision rating of fine filtration equipment. The filter mainly uses PA/PE micropore filter cartridge sintered from macromolecular materials as the filter medium, with high filtration precision rating, the filter element can be regenerated and long lifespan. The PA/PE micropore filter adopts a fully enclosed filtration method, and it can equipped with pneumatic valves and PLC, which has a high degree of automation compared with ordinary filter.

"The filter generally does not drain the residue, but mainly intercepts impurities and returns the thick slurry. The viscosity of the material is preferabl y lower than 30CP and not too sticky. Solid content less than 0.5%."

Filtration processing

PA/PE micropore filter (microporous precision filter) is the process of separating solid particles from fluid. The basic principle is: under the action of pressure difference, the solid-liquid and gas-solid two-phase mixture is forced through the porous medium (Filter tube), solid particles are trapped on the medium, so as to achieve the purpose of separation of liquid gas and solid.

The difference between PA and PE

The polymer PE sintered pipe uses high-quality ultra-high molecular weight polyethylene as the main raw material, and the product is pure white. The PA microporous filter tube is made of composite materials such as activated carbon fibers of the corresponding mesh number added to the PE material, and the product is pure black. The temperature resistance of PE filter cartridge is 80℃, and that of PA filter cartridge is 120 °C.

Specification

Model	Cartridge QTY	Cartridge	Filtering Area	Housing Volume	Inlet/Outlet	Discharging Port	Housing Diameter	Housing Height	Discharge Port Height
YWPAE-1	17	500mm	1m²	40L	DN20	DN100	300mm	1000mm	400mm
YWPAE-2	22	750mm	2m²	76L	DN25	DN100	350mm	1250mm	400mm
YWPAE-3	34	500mm	2m²	90L	DN25	DN150	450mm	1050mm	400mm
YWPAE-4	34	1000mm	4m²	175L	DN32	DN150	450mm	1600mm	500mm
YWPAE-5	42	1000mm	5m²	200L	DN40	DN150	500mm	1650mm	500mm
YWPAE-14	117	1000mm	14m²	580L	DN50	DN250	800mm	1700mm	600mm
YWPAE-18	151	1000mm	18m²	760L	DN80	DN300	900mm	1750mm	700mm
YWPAE-22	184	1000mm	22m²	900L	DN80	DN300	1000mm	1800mm	700mm
YWPAE-50	268	1500mm	48m²	1800L	DN100	DN350	1200mm	2400mm	800mm
YWPAE-60	363	1500mm	65m²	2600L	DN150	DN350	1400mm	2500mm	800mm
YWPAE-80	469	1500mm	84m²	3400L	DN50	DN400	1600mm	2580mm	800mm
YWPAE-100	587	1500mm	105m²	4500L	DN150	DN450	1800mm	2650mm	800mm
YWPAE-130	732	1500mm	131m²	6000L	DN200	DN500	2000mm	2800mm	800mm

Features

The chemical properties of the PA/PE microporous tube filter element are very good, acid resistance, alkali resistance, aldehyde resistance and aliphatic hydrocarbon resistance; it is resistant to organic solvents such as ester ketone and ether below 80 °C;
Temperature resistance: Microporous PE medium: temperature resistance ≤ 80 degrees; microporous PA medium: temperature resistance ≤ 120 degrees.
The filtration accuracy of the microporous filter can reach 0.1μm; the particles above 0.3μm are filtered at one time, and the particles below 0.3μm need to run for a short time, and then form a filter layer;
Closed filtration, safe production, no odor overflow, to ensure clean production;
Fast gas backflushing and slag discharge at the same time regenerates the filter element;

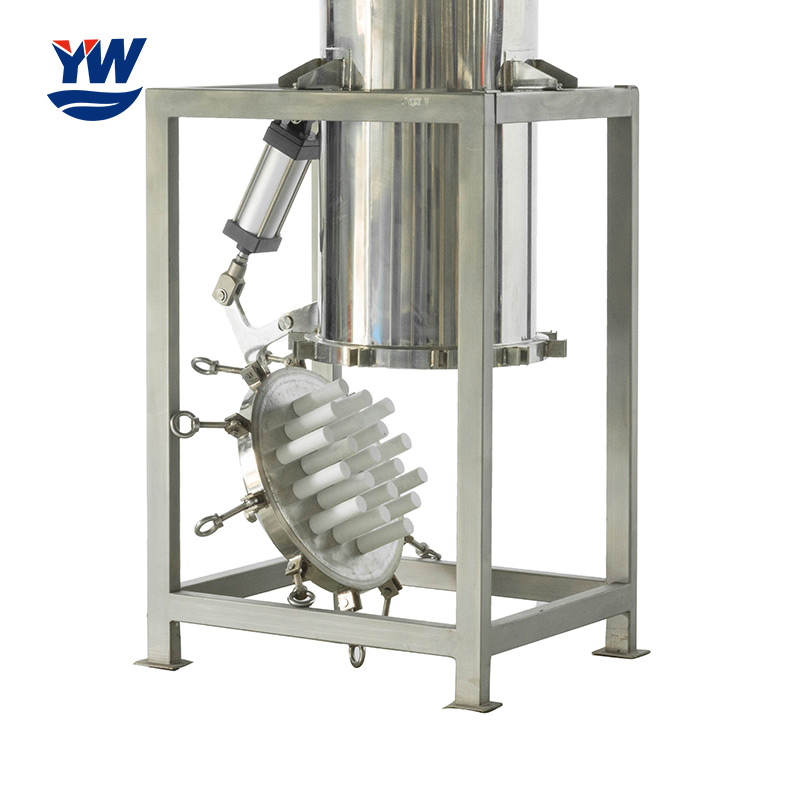

There is a pneumatic slag discharge port at the bottom of the equipment, which can realize rapid start-up and shutdown, fast gas backflushing to remove slag and regenerate the filter element at the same time, which is convenient and fast to clean;
According to the requirements, a thermal insulation jacket can be provided outside the machine body, and the inner wall of the machine body is lined with an anti-corrosion material layer.

Applications

Precision filtration of powdered activated carbon in pharmaceutical and food production;
Precision filtration of Chinese herbal medicines;
Precision filtration of oral liquid, injection liquid, nourishing liquid, medicinal wine, etc.;
Precision filtration of syrup for pharmaceutical and food;
Precision filtration of soy sauce, vinegar, etc.;
Precision filtration of fruit juice (apple juice, strawberry juice, hawthorn juice, etc.);
Filtration of iron sludge in pharmaceutical and chemical production;
Filtration of catalysts and other ultrafine particles in pharmaceutical and fine chemical production.

Frequently Asked Questions

What is the primary difference between the PA and PE filter cartridges?

The PE (Polyethylene) filter cartridge is made from pure white, ultra-high molecular weight polyethylene and has a maximum temperature resistance of 80°C. The PA filter cartridge is pure black, made from a composite of PE material and activated carbon fibers, and can withstand higher temperatures up to 120°C.

What is the filtration accuracy of the PA/PE micropore filter?

The filtration accuracy can reach up to 0.1μm. During operation, particles larger than 0.3μm are filtered out immediately, while particles smaller than 0.3μm require a short run time to form an initial filter layer before being effectively trapped.

How does the slag discharge and cleaning process work for this equipment?

The filter is designed with a fully enclosed automatic system featuring a pneumatic slag discharge port at the bottom. This design allows for fast gas backflushing, which effectively removes the trapped residue (slag) and regenerates the filter element at the same time, making cleaning convenient and fast.

What are the ideal liquid conditions and chemical tolerances for using this filter?

The equipment is best suited for liquids with a solid content of less than 0.5% and a viscosity lower than 30CP (not excessively sticky). The filter elements possess excellent chemical stability, offering strong resistance to acids, alkalis, aldehydes, and aliphatic hydrocarbons, and can handle organic solvents like ester ketones and ethers at temperatures below 80°C.

In which industries and specific applications is this micropore filter most commonly used?

It is heavily utilized in the pharmaceutical, food, beverage, and fine chemical sectors. Common applications include the precision filtration of powdered activated carbon, Chinese herbal medicines, syrups, oral and injection liquids, fruit juices, soy sauce, as well as the separation of catalysts and iron sludge in chemical production.
