During the sand washing process, a large amount of impurities such as clay and stone powder are washed out from the raw sand, forming highly concentrated muddy water. Direct discharge of this water would not only cause serious environmental pollution but also lead to the waste of water resources. The use of a filter press can effectively treat the slurry mixture generated from sand washing, achieving efficient solid-liquid separation, facilitating the recycling of water resources, and enabling the standardized disposal of solid waste.
Sand washing plants generate large volumes of muddy wastewater every day. When raw sand and gravel are washed to remove clay, silt, and fine particles, the runoff carries a heavy load of suspended solids — typically between 5,000 and 50,000 mg/L depending on the source material and washing intensity. This water cannot be discharged directly. It damages local waterways, violates environmental regulations, and wastes a resource that can be recovered and reused.
The suspended particles are mostly fine silica sand, clay minerals, and trace amounts of organic matter. Particle sizes range widely, from coarse sand at several hundred microns down to colloidal clay at under 2 microns. This mix is what makes sand washing wastewater treatment more demanding than simple settling — fine clay particles stay suspended almost indefinitely without chemical assistance.
The typical treatment goal is twofold: recover clean water for reuse in the washing circuit, and produce a dry, stackable solid cake that can be transported off-site or sold as a by-product filler material.

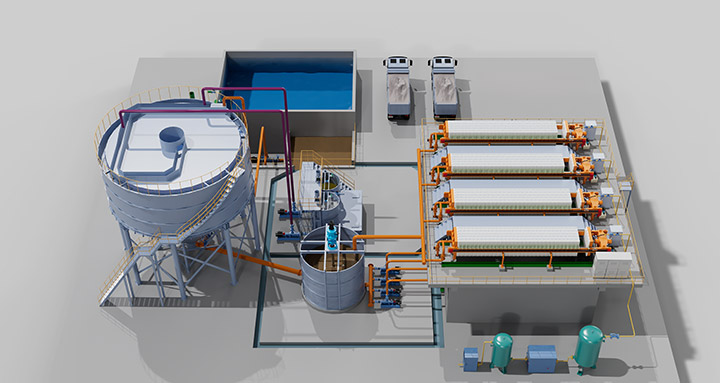

A well-designed sand washing wastewater treatment system usually follows these stages in sequence:
Two filter press configurations dominate sand washing applications. The table below compares their key parameters to help with equipment selection:
| Parameter | Chamber Filter Press | Membrane Filter Press |
|---|---|---|
| Operating pressure | 6–10 bar | 6–16 bar |
| Final cake moisture | 28%–38% | 20%–30% |
| Squeeze stage | Not available | Yes — diaphragm squeeze |
| Best suited for | Standard sand sludge, stable feed | High-clay sludge, tight moisture targets |
| Automation level | Semi or fully automatic | Fully automatic |
| Filter plate material | Polypropylene (PP) | PP with elastomer membrane |
| Typical plate sizes | 800×800 mm to 1500×1500 mm | 800×800 mm to 1500×1500 mm |
| Equipment cost | Lower | Higher |
For most standard sand washing sites, a semi-automatic hydraulic chamber filter press delivers a good balance of performance and cost. Sites with high clay content or strict moisture requirements benefit from the additional squeeze stage that a membrane filter press provides.
Sand washing plants have tried various dewatering approaches over the years — settling ponds, belt presses, centrifuges. Each has limitations when dealing with fine, clay-rich slurry.
Settling ponds take up large land areas, fill up quickly, and produce a wet, semi-liquid material that is hard to transport. Belt filter presses work well for coarser sludge but struggle with very fine particles, which tend to blind the belt and push through as turbid filtrate. Centrifuges can handle fine solids but have high energy consumption and significant wear on the bowl when abrasive sand is present.
A filter press for sludge dewatering sidesteps most of these issues. It produces a firm, stackable cake with no free-draining liquid. The filtrate is consistently clear. And because the filter cloth contains particles even at sub-micron sizes when a cake layer builds up, filtration quality improves as the cycle progresses rather than getting worse.
Flocculant selection and dosage have a direct effect on cycle time, cake moisture, and filter cloth life. Getting this wrong is one of the most common causes of poor filter press performance on sand washing sites.
Anionic PAM is the standard choice for silica-based sand sludge. Molecular weight typically falls between 8 million and 20 million Daltons. Higher molecular weight gives stronger floc but can be harder to dissolve evenly. Cationic PAM is used when the slurry carries a negative charge that prevents anionic PAM from binding effectively — this is more common with certain clay types like montmorillonite.
Dosing points matter as much as dosage rate. PAM should be added at a point where mixing energy is high enough to distribute it through the slurry but not so high that shear breaks up the flocs before they reach the filter. In-line static mixers at the pump inlet work well for most installations.
A jar test before commissioning is strongly recommended. Mix small samples at different PAM concentrations and observe settling speed and supernatant clarity. This gives a baseline dosage that can be fine-tuned during plant start-up. Overdosing PAM is wasteful and can actually cause the slurry to become sticky, which accelerates filter cloth blinding.
Filter cloth is a consumable, but the right selection can extend service life from a few weeks to six months or longer. Sand sludge is abrasive, so cloth durability is just as important as filtration efficiency.
| Cloth Property | Recommended for Sand Sludge | Why It Matters |
|---|---|---|
| Fiber material | Polypropylene (PP) monofilament | Good abrasion resistance, easy to clean |
| Weave type | Plain or twill weave | Balances filtration rate with cake release |
| Air permeability | 300–600 L/m²/s at 200 Pa | Higher permeability speeds initial filtration |
| pH resistance | pH 2–12 | Handles acidic or alkaline slurries |
| Cloth cleaning method | High-pressure water wash (on or off press) | Removes embedded clay from pores |
Cloth should be inspected at every maintenance cycle. If filtrate turbidity rises between cycles, or if cycle times are increasing without any change in slurry concentration, the cloth is likely blinded and needs either acid washing or replacement. Tracking cloth performance over time helps predict replacement intervals and avoid unplanned downtime.
The feed pump is often underspecified in sand washing filter press installations. This leads to long cycle times and high cake moisture because the system never reaches target pressure in the early filtration stage.
Plunger pumps are the preferred choice. They deliver constant flow against rising back-pressure as the cake builds and filtration resistance increases. Screw pumps also work for lower-solids feed but may struggle with the abrasive nature of sand-heavy slurry.
Key pump sizing parameters for a typical installation:
A variable frequency drive (VFD) on the pump motor allows the system to maintain consistent pressure rather than a fixed flow rate. This is especially useful as feed slurry concentration varies through a shift, which is common in sand washing operations.
Sand washing filter press installations can run reliably for years with basic maintenance discipline. The most common causes of downtime are cloth blinding, hydraulic system faults, and plate damage from overpressure or grit ingress into the sealing faces.
For sites running multiple shifts, a simple log sheet tracking cycle time, feed pressure, and cake moisture by shift helps identify drift before it becomes a problem. Cycle time creeping up over days usually means cloth blinding is building up, and a cloth wash can be scheduled before the next shift rather than during it.

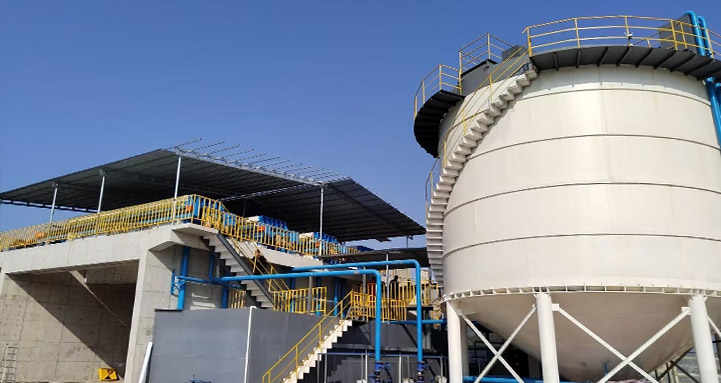

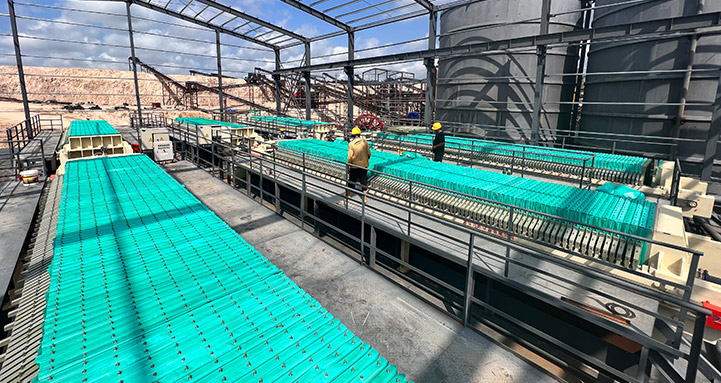

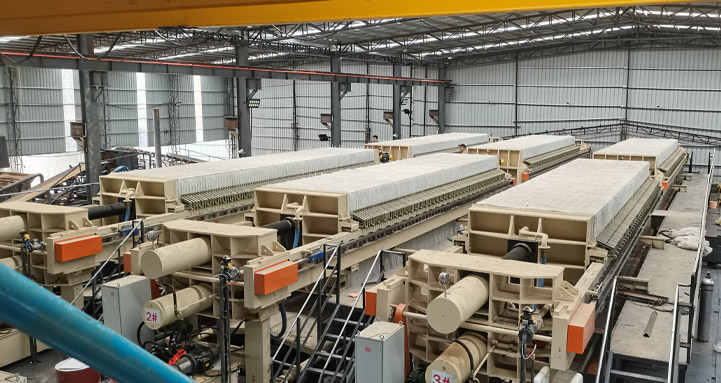

Learn more about the project cases of sand washing wastewater treatment with chamber filter press to see how these systems perform across different site conditions.
Plant capacity and slurry characteristics both influence which configuration works best. The table below provides a starting reference for equipment sizing:
| Plant Scale | Slurry Volume (m³/h) | Recommended Filter Press | Plate Size |
|---|---|---|---|
| Small quarry | 5–20 | Semi-auto chamber filter press | 800×800 mm |
| Medium sand plant | 20–60 | Fully auto chamber filter press | 1000×1000 or 1200×1200 mm |
| Large aggregate plant | 60–150+ | Fully auto membrane filter press | 1500×1500 mm |
| High-clay content site | Any | Membrane filter press with squeeze | Match to volume |
For large plants, running two smaller filter press units in parallel is often more practical than one oversized unit. It allows one press to stay in production while the other cycles through cloth washing or maintenance. This approach also provides redundancy if one unit goes offline unexpectedly.
For sites dealing with combined stone cutting and sand washing waste streams, a stone factory sludge treatment system with dedicated slurry pre-screening may be needed before the filter press to protect cloth and plates from coarse chip damage.
Yuwei Filter Equipment supplies fully automatic chamber filter press and membrane filter press systems configured specifically for sand washing and aggregate processing plants. Each system is matched to feed volume, target moisture content, and site layout, with full technical support from pre-sales testing through to commissioning and ongoing after-sales service.
