Models : Manual filter press
Material : Carbon Steel
Cakes thickness : 30mm
Filtration pressure : ≤0.6Mpa
Plate Shiting : Manual
Filter Plate Size : 380-700mm

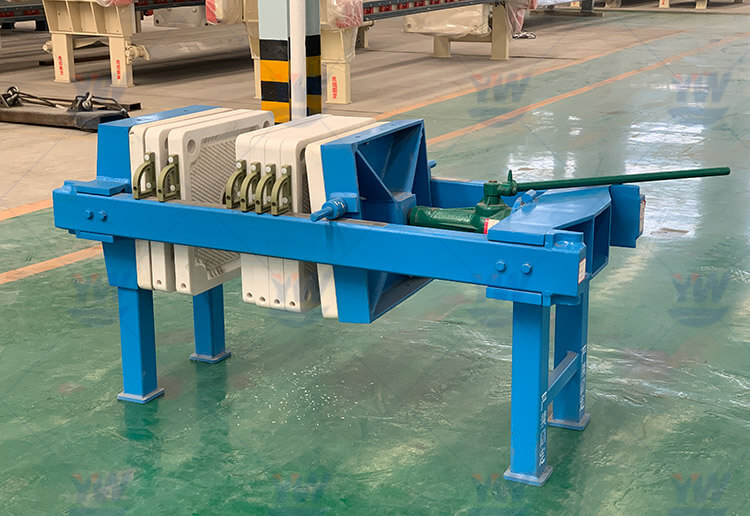

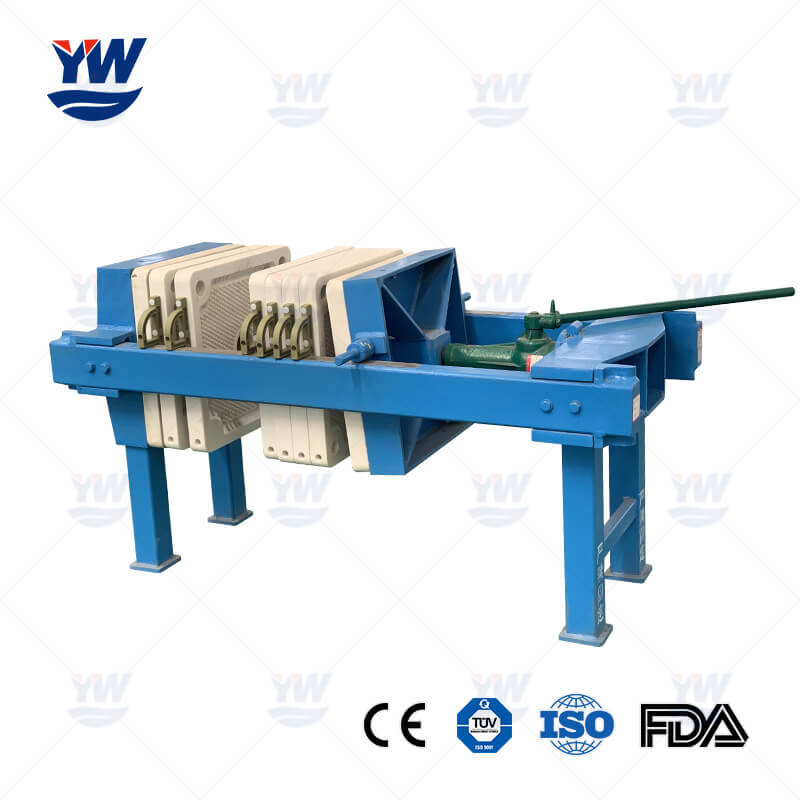

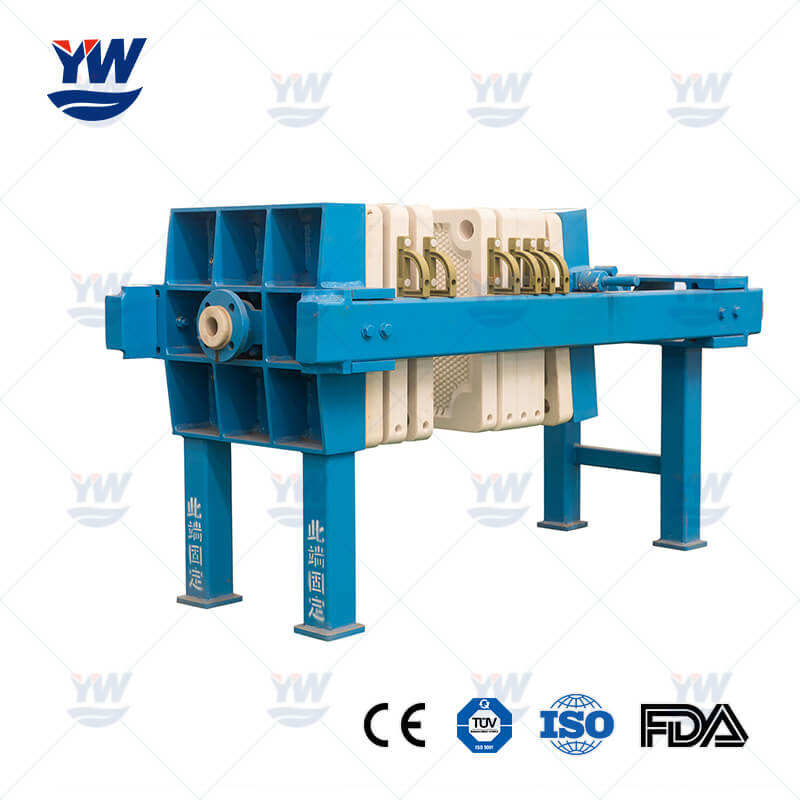

Small scale jack filter press adopts screw jack as closing system. It has features of simple structure, easy operation, no power consumption, cost saving. It is generally used in filter press with 1-40m² filter area.
| Model | Filter area (m²) |
Plate size (mm) |
Cake thickness (mm) |
Filter chamber volume (L) |
Plate Qty. (Pcs) |
Filtration pressure (Mpa) |
Weight (kg) |
Dimensions L×W×H(mm) |
| XMQ1/320 | 1 | 380 × 380 | 30 | 15 | 4 | ≤0.6 | 490 | 1230×570×660 |
| XMQ2/320 | 2 | 31 | 9 | 528 | 1455×570×660 | |||
| XMQ3/320 | 3 | 46 | 14 | 550 | 1680×570×660 | |||
| XMQ4/450 | 4 | 500 × 500 | 60 | 9 | ≤0.6 | 780 | 1630×800×900 | |
| XMQ6/450 | 6 | 91 | 4 | 830 | 1880×800×900 | |||
| XMQ8/450 | 8 | 121 | 19 | 880 | 2130×800×900 | |||
| XMQ10/450 | 10 | 151 | 24 | 930 | 2380×800×900 | |||
| XMQ12/450 | 12 | 182 | 29 | 980 | 2630×800×900 | |||
| XMQ15/450 | 15 | 225 | 36 | 1030 | 2980×800×900 | |||
| XMQ16/450 | 16 | 243 | 39 | 1050 | 3130×800×900 | |||
| XMQ15/630 | 15 | 700× 700 | 226 | 18 | ≤0.6 | 1257 | 2250×1080×1060 | |
| XMQ20/630 | 20 | 297 | 24 | 1347 | 2550×1080×1060 | |||
| XMQ30/630 | 30 | 452 | 37 | 1693 | 3200×1080×1060 | |||
| XMQ140/630 | 40 | 595 | 49 | 2193 | 3900×1080×1060 |

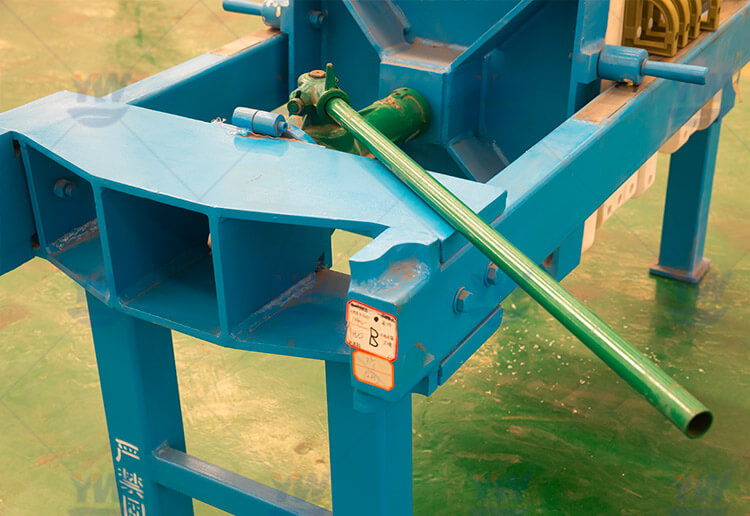

Instead of an automated hydraulic station, it uses a mechanical screw jack (operated by a hand crank or lever) to manually tighten and compress the filter plates, making it much more affordable and easier to maintain.
It is perfect for small-batch processing, laboratory R&D, pilot tests, and artisanal production (such as small-scale herbal extraction or food clarifying) where automation is not required.
No. As long as the operator applies sufficient pressure with the screw jack to seal the plate stack, it provides the same high-clarity solid-liquid separation as larger, automated machines.

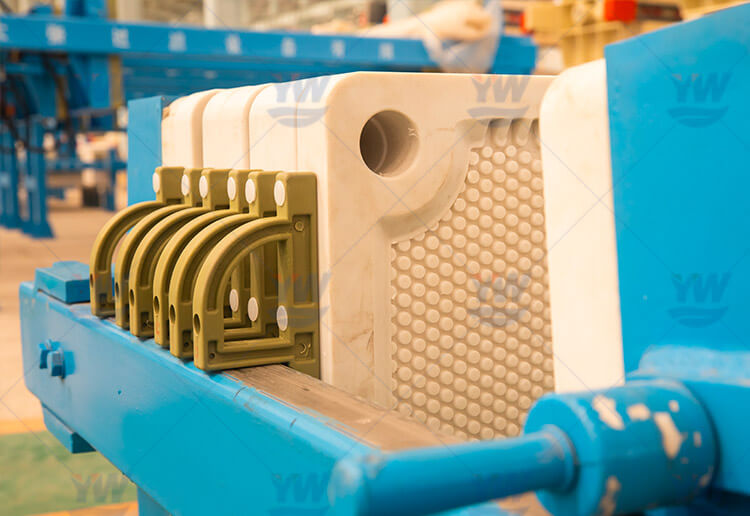

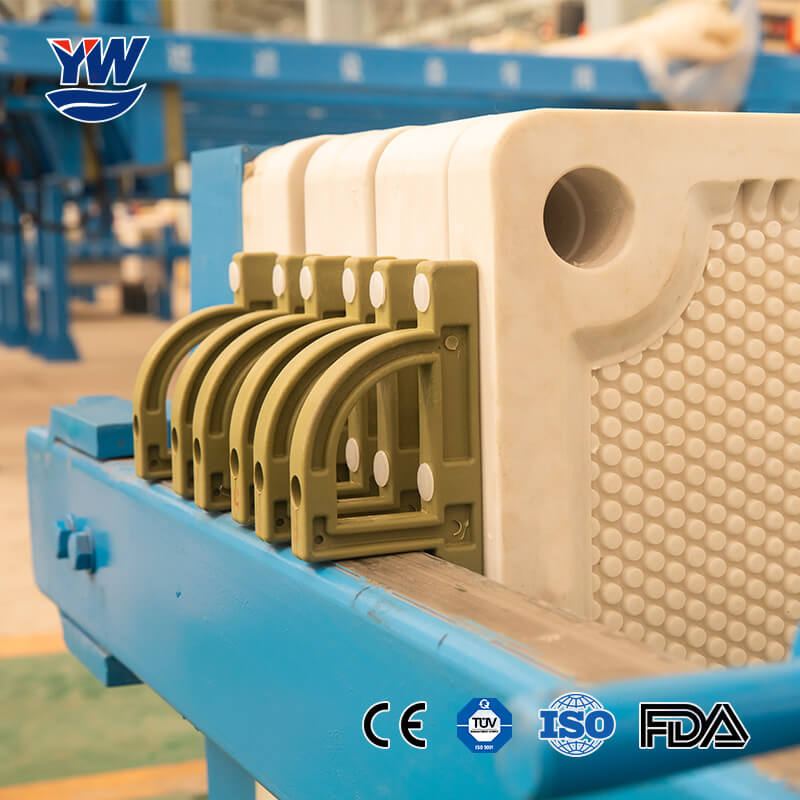

The frame is typically built from high-strength carbon steel for stability, while the filter plates are made of food-grade or chemical-resistant reinforced polypropylene (PP).
Yes. Its compact, simple design requires no electricity, complex piping, or dedicated hydraulic oil lines, making it extremely easy to install on a benchtop or transport within a small facility.
