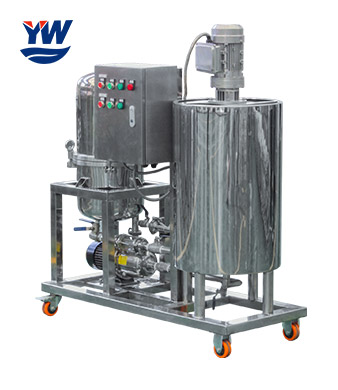

The Definitive Engineering Guide to Diatomaceous Earth Filtration

When processing viscous liquids or fluids burdened with sticky, microscopic impurities (such as proteins or yeast), standard filter meshes or bags will quickly become blocked (blinded). The Diatomaceous Earth (D.E.) Filter solves this engineering challenge by utilizing a continuously renewing, highly porous filter matrix, ensuring exceptionally long filtration cycles and unparalleled optical clarity in the final product.

1. The Principle of Pre-Coat and Body Feed Filtration

How does a D.E. filter achieve sub-micron precision without clogging? The process relies on three critical operational phases:

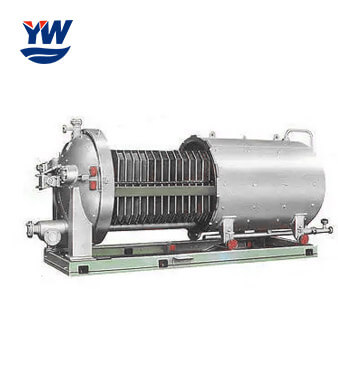

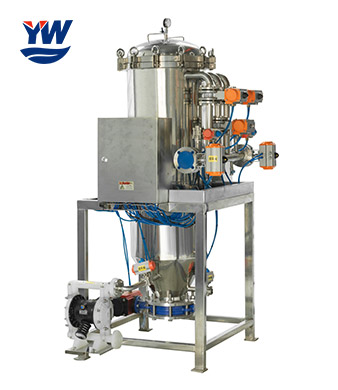

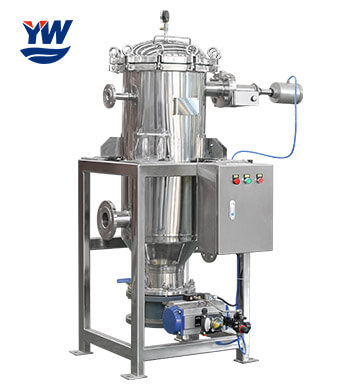

• Pre-Coating: Before filtration begins, D.E. powder is mixed with clean liquid and circulated through the pressure vessel. It coats the internal filter elements (typically stainless steel wedge-wire candles or mesh leaves), forming a highly porous, 2mm-3mm thick microscopic filtration matrix.
• Body Feeding: During actual production, very small amounts of D.E. are continuously injected (dosed) into the incoming feed slurry. This new D.E. mixes with the suspended impurities, preventing them from forming an impermeable layer. The filter cake continuously grows, remaining porous and extending the cycle.
• Cake Discharge: Once the cycle ends, the vessel is drained. Depending on the model, the spent D.E. cake is automatically discharged via centrifugal spinning, mechanical vibration, or compressed air back-blowing, leaving the internal elements clean for the next batch.

2. Core Engineering Advantages

Upgrading to a Yuwei D.E. filtration system provides distinct advantages for sanitary liquid processing:

• Brilliant Optical Clarification: Achieves retention ratings down to 0.5 – 1.0 microns, making it the absolute gold standard for removing haze and achieving “polished” transparency in beer, wine, and fruit juices.
• Closed Sanitary Operation: The entirely enclosed stainless steel pressure vessel prevents fluid oxidation, aroma loss, and external contamination—critical for delicate beverages and pharmaceuticals.
• Zero Dead Corners for CIP: Internally mirror-polished (Ra ≤ 0.4μm) and designed without crevices, our vessels are fully compatible with automated Clean-In-Place (CIP) and Sterilize-In-Place (SIP) protocols.

3. Technical Sizing & Infrastructure Planning

Proper sizing is vital to ensure optimal fluid velocity, which keeps the D.E. pre-coat stable on the filter elements. Below is a reference matrix for our industrial D.E. filters.

Critical Logistics & Structural Note: When integrating these vessels into a sanitary facility, project engineers must account for the Operating Weight. Although they appear sleek, these filters are constructed from thick-gauge 304/316L stainless steel to safely withstand internal operating pressures up to 0.6 MPa. The static mass of the vessel—especially when fully flooded with liquid and heavy D.E. cake—requires a robust, engineered concrete foundation or heavy-duty steel mezzanine. This wet operating weight is a critical metric for safe facility installation and should not be confused with volumetric throughput.

4. Primary Industry Applications

• Brewing & Winemaking: The backbone of cold-filtering craft beer (removing yeast and chill haze) and polishing wines without stripping essential flavor profiles.
• Syrup & Sweeteners: High-temperature clarification of viscous liquid sugar, fructose, and gelatin where conventional filters quickly fail.
• Edible Oils: Winterization and polishing of olive oil, sunflower oil, and CBD extracts to remove waxes and achieve brilliant clarity.
