Manual Hydraulic Stainless Steel Plate and Sheet Filter for Wine, Vinegar, Grape Juice and Oil

Modle: BASJL400-8

Filter area: 8m²

Filter Media: Cardboard, Filter Sheet

Filter Aids: Cellulous, Diatomaceous Earth, Perlite etc.

Plate Shifting : Manual hydraulic

Pressure : 0.4 MPa

Seal Material : Food Grade Silicone Rubber.

Temperature : ≤ 120 °C.

Description

The Stainless Steel Plate and Sheet Filter is a high-efficiency solid-liquid separation equipment based on the depth filtration principle, primarily used for precision filtration or sterilization filtration of liquids in industries such as food, beverages, pharmaceuticals, and chemicals. The filtration unit employs multi-layered food-grade filter plates (e.g., diatomaceous earth plates or cellulose plates), with a precision range covering 0.1μm (sterilization grade) to 10μm (coarse filtration grade).

Product Display

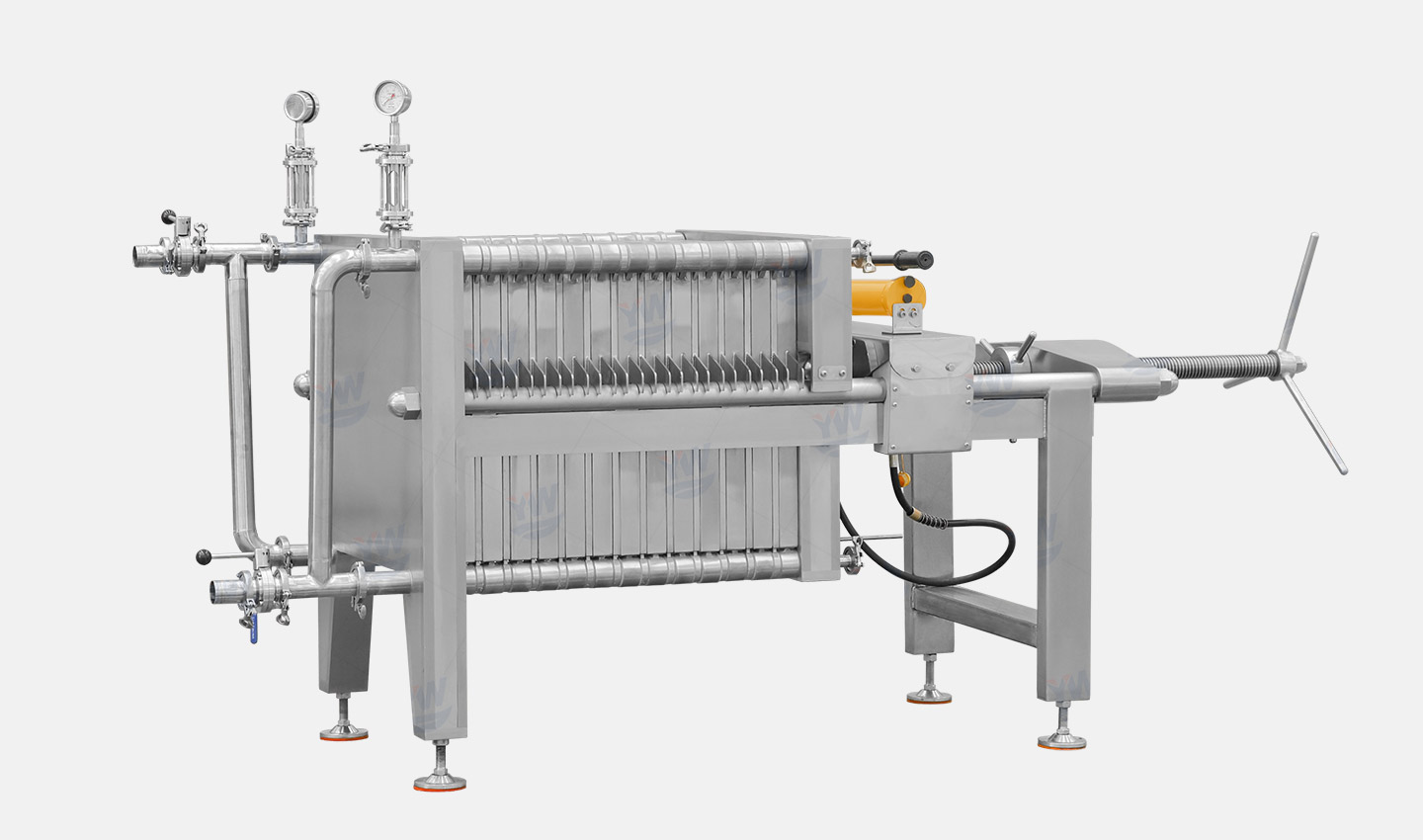

Plate and Sheet Filter

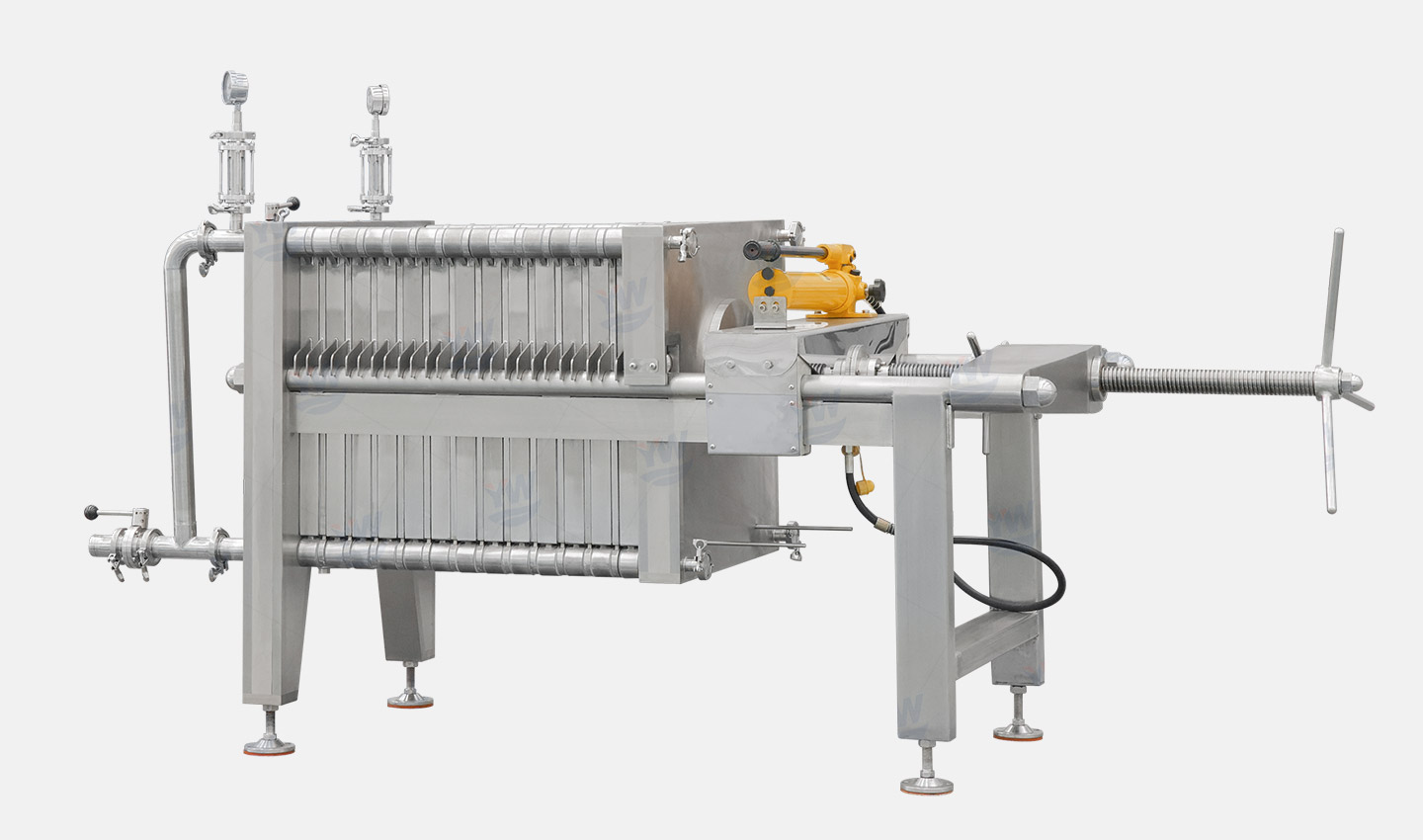

Plate and Sheet Filter

Stainless Steel Filter Plate and Filter Frame

Stainless Steel Filter Plate and Filter Frame
Stainless Steel Filter Plate and Filter Frame

Application

Beer and Wine Filtration

  • Beer: Used to remove yeast, proteins, and cold coagulants, achieving a filtration precision of 0.8μm and ensuring turbidity ≤0.3 NTU.
  • Wine/Fruit Wine: Addresses low-temperature turbidity issues by retaining 0.2–0.5μm particles (e.g., colloids, microorganisms), improving clarity.

Juice and Dairy Products

  • Concentrated Juice: Removes fruit pulp fibers, pectin, and post-sterilization suspended solids.
  • Milk/Plant-Based Protein Beverages: Clarifies products like soy milk and coconut milk to prevent layering and sedimentation.

Syrup and Oil Processing

  • Used for decolorizing sugar solutions, purifying sweet water, and processes such as oil dewaxing, decolorization, and degreasing to enhance food quality.

Pharmaceutical Preparations

  • Hydrogen Peroxide, Vitamins: Achieves sterile filtration via 0.2μm sterilization-grade plates, replacing high-temperature sterilization to preserve drug activity.
  • Injectables and Medicinal Liquids: Precision filtration removes particulates and microorganisms, complying with GMP/FDA standards.

Chemical Products

  • Petrochemicals: Clarifies diesel and lubricating oils by removing paraffin and impurities.
  • Organic/Inorganic Chemicals: Purifies substances like organic acids, alcohols, bromine water, and potassium cyanide.
  • Coatings and Dyes: Fine filtration of resins, varnishes, and dyes to ensure particle-free end products.

Frequently Asked Questions

What filter media and aids can be used with this equipment?

This filter utilizes cardboard and filter sheets as the primary media. It also supports filter aids like cellulose, diatomaceous earth, and perlite to achieve depth filtration depending on your liquid's processing requirements.

What is the maximum operating temperature and pressure for this filter?

The machine is designed to safely handle a maximum operating pressure of 0.4 MPa. Its high-temperature resistance allows it to handle liquids up to 120 °C, ensuring safe processing of hot solutions.

Is the sealing material safe for processing edible oils, wine, and juice?

Yes. The unit uses food-grade silicone rubber as its sealing material. This ensures complete safety and hygiene, preventing contamination while effectively sealing the plates during the filtration of beverages and oils.

How does the manual hydraulic system work to shift the plates?

The system utilizes a manual hydraulic mechanism to compress and tightly seal the multi-layered stainless steel filter plates. This creates a secure, leak-proof environment for solid-liquid separation without requiring electrical power for the closing force.

What filtration precision can this plate and sheet filter achieve?

The filtration unit covers a wide precision range from 0.1 μm up to 10 μm. It can perform everything from coarse impurity removal in oils to micro-organism and yeast sterilization in wine and juice.
